ACTINIS - 带屏蔽功能的IMS

用于分析放射性样品的高性能屏蔽式 SIMS 仪器
众所周知,动态二次离子质谱仪(SIMS)适用于广泛的核科学应用,但对于高放射性材料(如辐照核燃料)的研究,则需要使用特定的仪器。
ACTINIS 源于经过实证的 CAMECA IMS 7f 系统,设计用于在安全环境中对放射性样品进行高精度元素和同位素分析:它集成在一套生物保护装置中,以保护操作人员在样品转移和分析过程中免受污染和辐照影响,并配有多个用于大限度地减少人工操作的特殊装置(如安全进样系统)。
  • 产品概述 +


    划时代的 SIMS 性能

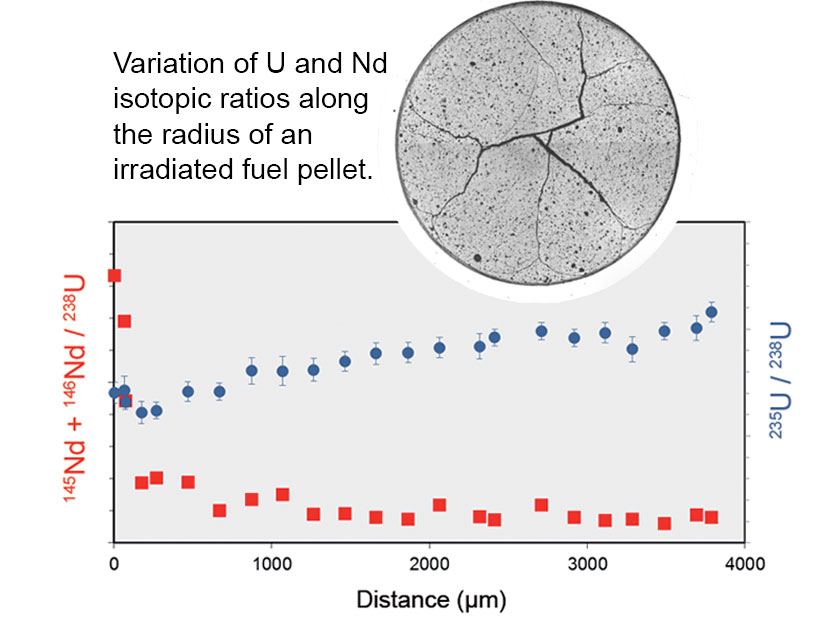

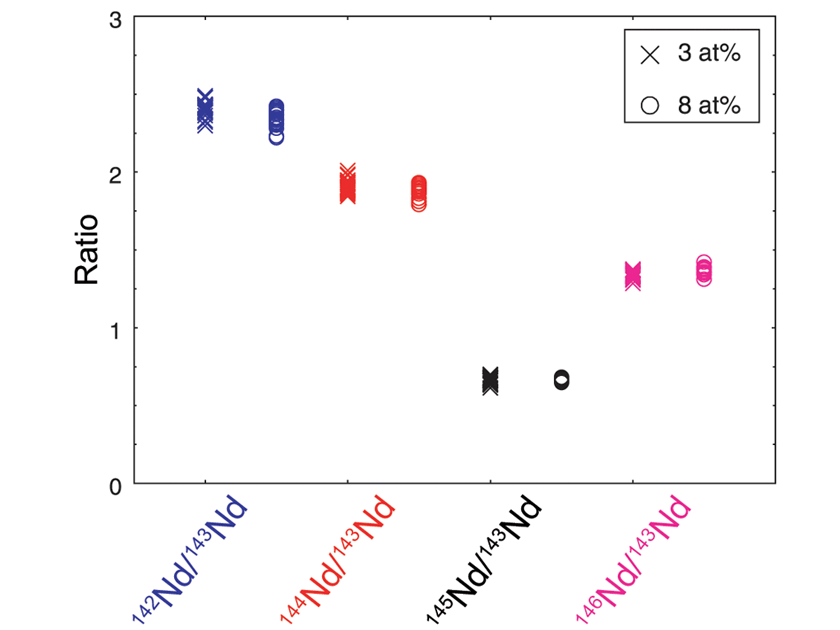

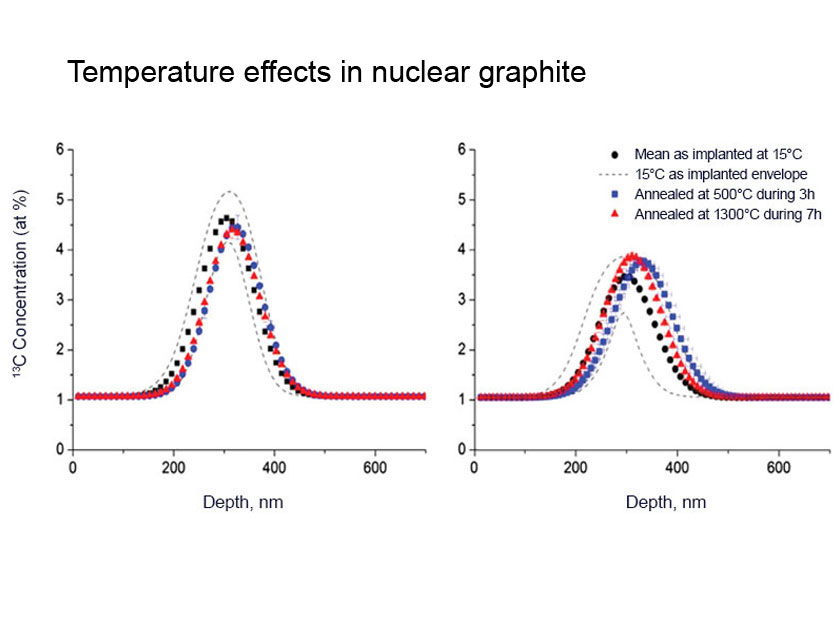

    ACTINIS 保留了 IMS 7f/7f-GEO 型号的优异特性,可提供高灵敏度的深度剖析和同位素比测量,以及亚微米级横向分辨率的元素和同位素图谱。
    • 双等离子体和铯一次离子源的组合,确保了对正电和负电物质有最佳的灵敏度
    • 二次离子光学收集系统具有高电场,可优化传输,还有光束对中,可实现优异的重复性,其光学选通功能还可实现高动态范围的深度剖析

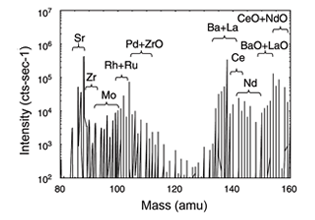

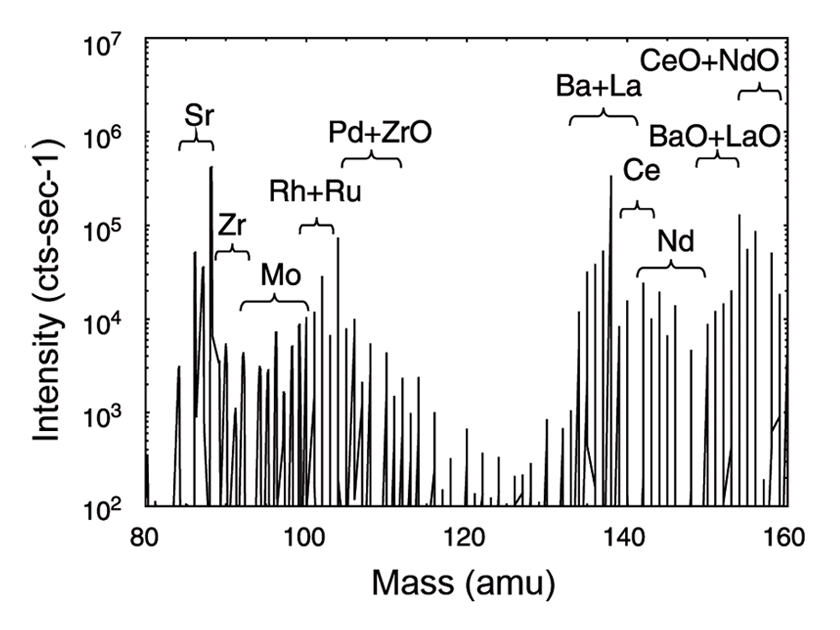

    • 双聚焦质谱仪(用于能量聚焦的静电分析仪,具有快速峰值切换功能的叠层磁铁)
    • 带有一个电子倍增器(EM)和两个法拉第杯(FC)的特殊检测系统,采用先进的测电技术(低噪声和稳定的基线)
    • 用于仪器调谐的直接离子成像

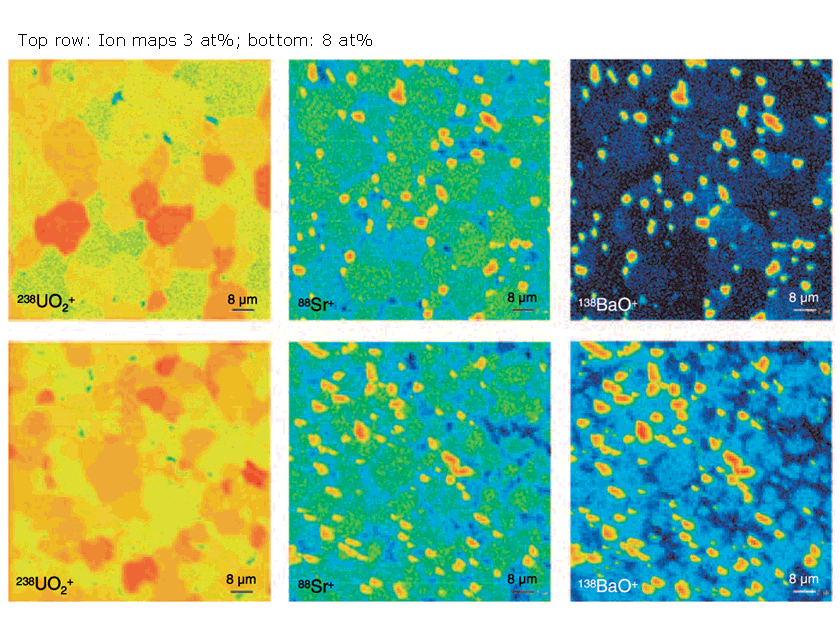

    • 扫描离子成像,用于以高横向分辨率绘制大小区域的图谱。

    先进的屏蔽技术

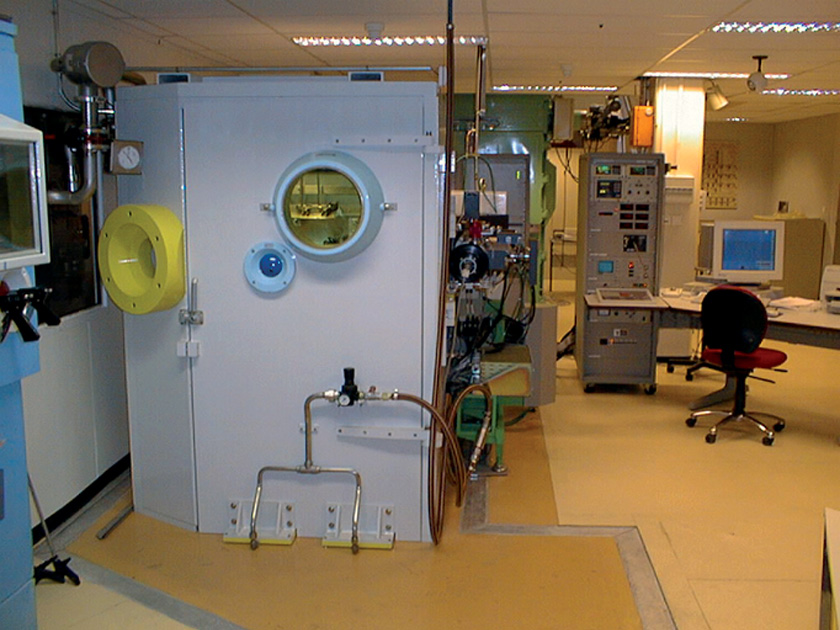

    包装中包含机械图纸和生物保护装置(仪器屏蔽装置)的详细规格,确保了辐射安全以及轻松与 SIMS 仪器进行连接。ACTINIS 配备了足够的手套箱(阿尔法保护)和铅壁室(伽马保护),可以分析在距离样品 5 厘米处测得的活性(剂量率)高达 2 Gy/h 的样品。

    全自动和易于使用
    ACTINIS 的自动化水平高,配有多个用于最大限度地减少人工操作的特殊装置,如安全进样系统等。我们开发了特殊工具,并对离子光学装置进行了改进,现在用户能够轻松在屏蔽装置内部进行维护。

    ACTINIS™ 的灵感来自于希腊语“ἀκτίς”(射线),同时也指核应用中特别重要的化学元素,即锕系元素。
  • 查看网络研讨会 +

    • ACTINIS, Dynamic SIMS for analysis of highly radioactive samples

      星期一, 十二月 14, 2020

      In this presentation recorded at the 2020 NuMat conference, Paula Peres introduces the ACTINIS Secondary Ion Mass Spectrometer: reminder of the basic principles of the SIMS technique, details of the shielding package providing all necessary protections against contamination and radiation effects while analyzing nuclear samples in ACTINIS, overview of the main applications.
      Duration : 20 minutes
      Click here to view
