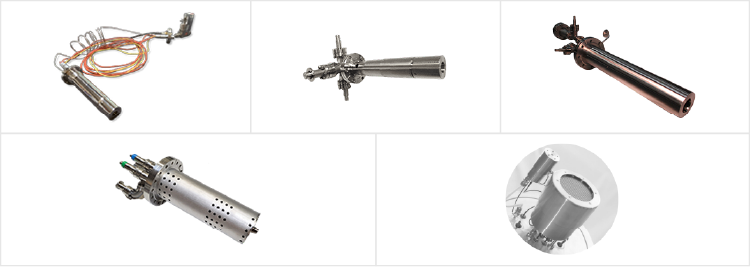

ECR 先进离子和电子源
产品与工艺对应关系
电荷中和
电子化学
高功率电子束
刻蚀
溅射
表面活化
束线应用
加速器
质谱分析
修形
表面改性
TES-GO
TES-GO-电子源 x x x
TES-GO-宽束离子源 x x x x x
TES-GO-高亮度离子源 x x x x x
TES-40
TES-40-电子源 x x x
TES-40-宽束离子源 x x x x x
TES-40-高亮度离子源 x x x x x
TES-63
TES-63-电子源 x x x
TES-63-离子源 x x x x x
TES-63-高亮度离子源 x x x x
TES-63-扫描型离子源 x x x
TES-100
TES-100-电子源 x x x
TES-100-离子源 x x x x x
TES-100-高亮度离子源 x x x x

  • 产品应用 +

    • Ion beam sputter deposition system applying a focused ion beam to a target material, facilitating thin film coating on a substrate
      Ion beam sputter deposition

      Ion Beam Sputter Deposition (IBSD) is a physical vapor deposition (PVD) technique that consists in adding a thin film to the substrate surface to improve its material properties. Traditional challenges of IBSD such as high maintenance, high level of complexity, and difficulty to scale up are overcome thanks to CAMECA’s unique ECR technology.

      继续阅读

    • Ion implantation apparatus directing high-energy ions into a semiconductor wafer to modify its electrical properties.
      Ion beam figuring (IBF)

      Ion Beam Figuring consists in locally sputtering atoms in order to create a surface with a specified profile. It is a used for precise figuring and finishing of optical elements, such as spheres, aspheres and free forms on lenses and mirrors. CAMECA’s ECR technology and ion optics system offer the highest flexibility in beam size, shape, and energy.

      继续阅读

    • Ion implantation apparatus directing high-energy ions into a semiconductor wafer to modify its electrical properties.
      Ion implantation

      Ion implantation consists in adding ions to the interior of a substrate to change its elemental composition and improve material properties. It is commonly used for steel toughening, medical implants, and semiconductor device fabrication.

      继续阅读

    • Ion beam system performing etching and polishing processes on a material surface to achieve desired microstructures.
      Etching, cleaning, polishing & milling

      Sputter cleaning, ion polishing, milling and cutting are all based on Ion Beam Sputtering. They are used as a surface preparation step before depositing a thin film, before high resolution imaging or surface analysis as well as for nanostructuring a surface. CAMECA’s ECR technology delivers stable and reliable beams, eliminating the maintenance required with filament-based technologies.

      继续阅读

    • Ion assisted deposition setup enhancing thin film growth by bombarding the substrate with low-energy ions during deposition.
      Ion assisted deposition

      Ion Assisted Deposition consists in modifing the properties of a growing thin film by directing an ion beam at it. It can also be used to purposely introduce compressive stress in the film to improve its mechanical properties. The stability and reliability of CAMECA ECR technology is attractive for ion assistance applications.

      继续阅读

    • Advanced instrumentation used in nuclear and atomic physics research for analyzing atomic structures and reactions.
      Nuclear and atomic physics

      CAMECA high energy single cavity sources are used in various setups for nuclear and atomic physics, ranging from particle injection into electrostatic storage rings or charge boosters, to power testing of future neutron detectors.

      继续阅读

  • 科研文章 +


    以下是CAMECA ECR 离子/电子源用户发表的部分论文：

    Novel low-temperature and high-flux hydrogen plasma source for extreme-ultraviolet lithography applications. A. S. Stodolna, T. W. Mechielsen, P. van der Walle, C. Meekes, H. Lensen. Published Online: 6 August 2024. 阅读全文

    Ion source developments to supply mono & multi charged ion beams to the new NHa C400 hadrontherapy system. L. Maunoury, P. Velten, X. Donzel, V. Engelen, G. Collignon, P. Sortais, J. Perrussel, P. Paliard and D. Bérard. Citation L. Maunoury et al 2024 J. Phys.: Conf. Ser. 2743 012090. 阅读全文

    Development of a high current electron beam facility for compact accelerator neutron source target thermal tests. J.F. Muraz, D. Santos, V. Ghetta, J. Giraud, O. Guillaudin, P. Sortais, T. Thuillier, J. Marpaud, M. Chala, M. Forlino, M. Hervé. Volume 1062, May 2024, 169214.  阅读全文

    Controlling the optical properties of hafnium dioxide thin films deposited with electron cyclotron resonance ion beam deposition. Chalisa Gier, Marwa Ben Yaala, Callum Wiseman, Sean MacFoy, Martin Chicoine, François Schiettekatte, James Hough, Sheila Rowan, Iain Martin, Peter MacKay, Stuart Reid, Volume 771, 30 April 2023, 139781. 阅读全文

    Processing and characterization of a multibeam sputtered nanocrystalline CoCrFeNi high-entropy alloy film. P. Nagy, N. Rohbeck, G. Roussely, P. Sortais, J.L. Lábárb, J. Gubicza, J. Michler, L. Pethö. Received 16 July 2019, Revised 31 January 2020, Accepted 11 February 2020, Available online 11 February 2020, Version of Record 29 February 2020. 阅读全文

    Amorphous Silicon with Extremely Low Absorption: Beating Thermal Noise in Gravitational Astronomy. I. A. Birney, J. Steinlechner, Z. Tornasi, S. MacFoy, D. Vine, A. S. Bell3, D. Gibson, J. Hough, S. Rowan et al. P. Sortais, S. Sproules, S. Tait, I. W. Martin, and S. Reid1. Phys. Rev. Lett. 121, 191101 – Published 6 November, 2018.
    阅读全文

    Effect of elevated substrate temperature deposition on the mechanical losses in tantala thin film coatings.Classical and Quantum Gravity, 35, 075001. (doi:10.1088/1361-6382/aaad7c). Vajente, G., Birney, R., Ananyeva, A., Angelova, S., Asselin, R., Baloukas, B., Bassiri, R., Billingsley, G., Fejer, M.M., Gibson, D., Godbout, L.J., Gustafson, E., Heptonstall, A., Hough, J., MacFoy, S., Markosyan, A., Martin, I.W., Martinu, L., Murray, P.G., Penn, S., Roorda, S., Rowan, S., Schiettekatte, F., Shink, R., Torrie, C., Vine, D., Reid, S., and Adhikari, R.X.  08 February 2018. 阅读全文

  • 用户一览 +


    CAMECA 的 ECR 源客户遍布全球各大洲，其中超过 80% 来自半导体、分析仪器和医疗健康等工业领域。以下列举部分学术机构客户：
