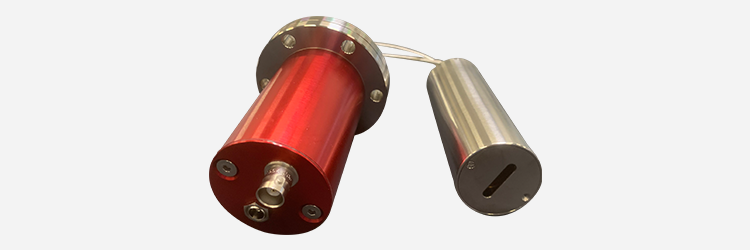

Faraday Cup 法拉第杯

CAMECA 法拉第杯用于测量粒子源产生的离子束或电子束电流。通过真空环境下可移动的结构以及与电子控制单元相连的柔性连接方式，它能够提供更高的灵活性，以适应不同应用需求。

离子源模块配置包括：

1 个 BNC 测量接口，可兼容 TES 离子源控制机架
1 根供电电缆

可提供多种孔径配置，并支持定制尺寸：

狭缝孔径：标准规格最长 19 mm、宽 5 mm
圆孔孔径：直径 1 mm
圆形孔径：直径最大可达 18.5 mm

法拉第杯的孔径尺寸可根据您的具体应用需求进行定制。

规格参数 +

法拉第杯	机械特性
真空馈通法兰类型	单接口 CF40
真空环境下可移动	是，通过柔性电缆与电子单元连接
孔径范围	圆形孔径：最大 18.5 mm 狭缝孔径：标准规格最长 19 mm、宽 5 mm 可根据需求定制
屏蔽罩直径	32 mm
总长度	法拉第杯（真空内）：80.5 mm 电子单元：100.8 mm（含 BNC 连接器）
法拉第杯	推荐使用参数
束流功率等级	最高 20 W
测量精度	最大校准电流的 0.1%
校准电流范围	可调范围：0–100 nA 至 0–100 mA
交流输入电压	230 V
偏置电压	最高 200 V
束流极性（正极或负极）	均支持
电气连接	1 个 BNC 测量接口（随设备提供），兼容 TES 离子源控制机架 1 根电源线（随设备提供）
冷却方式	无需冷却

产品应用 +
- Ion beam sputter deposition

  Ion Beam Sputter Deposition (IBSD) is a physical vapor deposition (PVD) technique that consists in adding a thin film to the substrate surface to improve its material properties. Traditional challenges of IBSD such as high maintenance, high level of complexity, and difficulty to scale up are overcome thanks to CAMECA’s unique ECR technology.

  继续阅读
- Ion beam figuring (IBF)

  Ion Beam Figuring consists in locally sputtering atoms in order to create a surface with a specified profile. It is a used for precise figuring and finishing of optical elements, such as spheres, aspheres and free forms on lenses and mirrors. CAMECA’s ECR technology and ion optics system offer the highest flexibility in beam size, shape, and energy.

  继续阅读
- Ion implantation

  Ion implantation consists in adding ions to the interior of a substrate to change its elemental composition and improve material properties. It is commonly used for steel toughening, medical implants, and semiconductor device fabrication.

  继续阅读
- Etching, cleaning, polishing & milling

  Sputter cleaning, ion polishing, milling and cutting are all based on Ion Beam Sputtering. They are used as a surface preparation step before depositing a thin film, before high resolution imaging or surface analysis as well as for nanostructuring a surface. CAMECA’s ECR technology delivers stable and reliable beams, eliminating the maintenance required with filament-based technologies.

  继续阅读
- Ion assisted deposition

  Ion Assisted Deposition consists in modifing the properties of a growing thin film by directing an ion beam at it. It can also be used to purposely introduce compressive stress in the film to improve its mechanical properties. The stability and reliability of CAMECA ECR technology is attractive for ion assistance applications.

  继续阅读
- Nuclear and atomic physics

  CAMECA high energy single cavity sources are used in various setups for nuclear and atomic physics, ranging from particle injection into electrostatic storage rings or charge boosters, to power testing of future neutron detectors.

  继续阅读
