基于 CF63 法兰的紧凑型 ECR 离子源，束流能量最高可达 15 kV

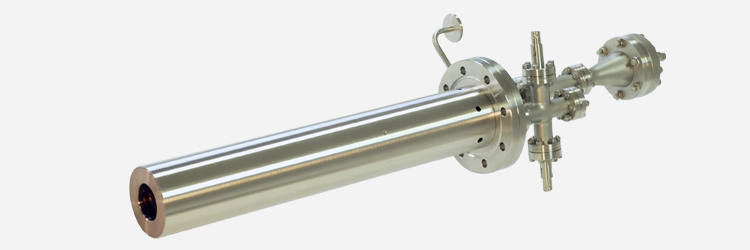

TES-63 基于安装于 ConFlat CF63 法兰上的 TES 谐振腔设计，束流能量最高可达 15 kV。

TES-63 提供三种版本：

  • 宽束离子源版本适用于多种应用，包括溅射、离子束铣削、清洗和抛光。
  • 高亮度离子源版本既可采用标准配置，也可选配 Einzel 透镜，以提高束流亮度并调整束流形状。该版本非常适用于质谱分析、离子束铣削、刻蚀以及束线应用。
  • 电子源版本适用于需要最高 15 kV 电子束的多种应用，包括电子化学、表面清洗和缺陷修复。
  • TES-63 是唯一提供扫描器选项的 TES 系列型号，可实现束流的精确偏转并对目标表面进行扫描。借助波形发生器，束流轨迹既可以按照光栅扫描方式运动，也可以沿任意设定曲线运动。

增加双极模式选项后，离子源可交替产生离子和电子，从而通过单一设备满足多种应用需求。

  • 规格参数 +


    TES-63 电子源 离子源-宽束型 离子源-高亮度型 离子源-扫描型
    应用 电子化学（最低至 100 V）/ 高功率电子束（最高 1.5 kW） 束线应用、加速器、质谱分析、溅射 束线应用、加速器、质谱分析、刻蚀 刻蚀、修形
    能量范围 100 V – 15 kV 0.5 – 15 kV 0.5 – 15 kV 0.5 – 15 kV
    电流 0.1 至 50 mA 0.1 至 5 µA（典型值，配备 0.3 mm 提取电极）
    10 至 500 µA（典型值，配备 3 mm 提取电极）    		 0.3 至 300 µA 10 至 500 µA
    束斑尺寸（典型值，距离 Einzel 透镜 10 cm 处） 取决于能量和聚焦条件 0.3–30 mm 0.5–5 mm 0.3–5 mm
    插入深度 150 mm 起，可按需提供更长尺寸 150 mm 起，可按需提供更长尺寸 300 mm（配备 Einzel 透镜） 360 mm（配备 Einzel 透镜和扫描器）

  • 产品应用 +

    • Ion beam sputter deposition system applying a focused ion beam to a target material, facilitating thin film coating on a substrate
      Ion beam sputter deposition

      Ion Beam Sputter Deposition (IBSD) is a physical vapor deposition (PVD) technique that consists in adding a thin film to the substrate surface to improve its material properties. Traditional challenges of IBSD such as high maintenance, high level of complexity, and difficulty to scale up are overcome thanks to CAMECA’s unique ECR technology.

      继续阅读

    • Ion implantation apparatus directing high-energy ions into a semiconductor wafer to modify its electrical properties.
      Ion beam figuring (IBF)

      Ion Beam Figuring consists in locally sputtering atoms in order to create a surface with a specified profile. It is a used for precise figuring and finishing of optical elements, such as spheres, aspheres and free forms on lenses and mirrors. CAMECA’s ECR technology and ion optics system offer the highest flexibility in beam size, shape, and energy.

      继续阅读

    • Ion implantation apparatus directing high-energy ions into a semiconductor wafer to modify its electrical properties.
      Ion implantation

      Ion implantation consists in adding ions to the interior of a substrate to change its elemental composition and improve material properties. It is commonly used for steel toughening, medical implants, and semiconductor device fabrication.

      继续阅读

    • Ion beam system performing etching and polishing processes on a material surface to achieve desired microstructures.
      Etching, cleaning, polishing & milling

      Sputter cleaning, ion polishing, milling and cutting are all based on Ion Beam Sputtering. They are used as a surface preparation step before depositing a thin film, before high resolution imaging or surface analysis as well as for nanostructuring a surface. CAMECA’s ECR technology delivers stable and reliable beams, eliminating the maintenance required with filament-based technologies.

      继续阅读

    • Ion assisted deposition setup enhancing thin film growth by bombarding the substrate with low-energy ions during deposition.
      Ion assisted deposition

      Ion Assisted Deposition consists in modifing the properties of a growing thin film by directing an ion beam at it. It can also be used to purposely introduce compressive stress in the film to improve its mechanical properties. The stability and reliability of CAMECA ECR technology is attractive for ion assistance applications.

      继续阅读

    • Advanced instrumentation used in nuclear and atomic physics research for analyzing atomic structures and reactions.
      Nuclear and atomic physics

      CAMECA high energy single cavity sources are used in various setups for nuclear and atomic physics, ranging from particle injection into electrostatic storage rings or charge boosters, to power testing of future neutron detectors.

      继续阅读
