ECR 离子与电子源

TES-GO

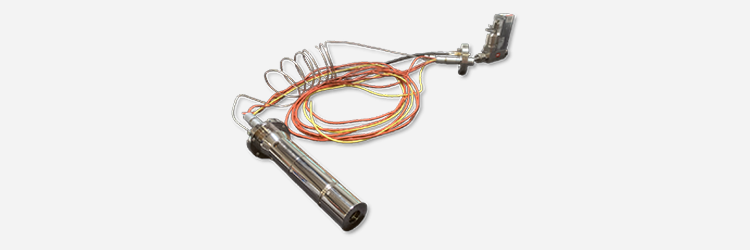

移动式 ECR 离子/电子源，高达 5kV 束流

TES-GO 是一种可在真空环境下运行的移动式离子/电子源，可支持高达 5kV 的束流能量。

柔性电缆将 TES-GO 连接至安装在真空腔体上的 CF40 法兰。该离子源采用包含安装支架的设计，并可根据需求进行定制。该离子源设计用于安装在您的运动平台（不包含在供货范围内）上，从而能够处理大面积区域或精确定义的局部区域。

TES-GO 提供三个版本：

高亮度离子版通常配备 Einzel 透镜，非常适用于溅射、铣削、刻蚀和光学修形等应用。
宽束流离子版非常适用于清洗和抛光应用。
电子版可作为中和器使用，产生低能量电子束，用于电荷补偿或最高达 5kV 的等离子体化学研究。

增加双极性选项后，可交替产生离子和电子，从而使用单一发射源满足多种应用需求。

规格参数 +

TES-GO	ions-高亮度型	ions-宽束型	electrons-中和器
应用	刻蚀、修形、溅射、表面活化、束线应用	刻蚀、溅射、表面活化	电子化学、高亮度离子源、表面改性
能量范围	0.5 – 5 kV	0.1 – 5 kV	0.1 – 5 kV
电流	10 至 500 µA	0.3 至 3 mA	0.1 至 50 mA
束斑尺寸（典型值 @ 4 cm）	0.3 至 15 mm	取决于能量	3-30 mm
离子源长度（不含连接器）	192 mm（带Einzel透镜）	150 mm	150 mm / 192 mm（带Einzel透镜）

产品应用 +
- Ion beam sputter deposition

  Ion Beam Sputter Deposition (IBSD) is a physical vapor deposition (PVD) technique that consists in adding a thin film to the substrate surface to improve its material properties. Traditional challenges of IBSD such as high maintenance, high level of complexity, and difficulty to scale up are overcome thanks to CAMECA’s unique ECR technology.

  继续阅读
- Ion implantation

  Ion implantation consists in adding ions to the interior of a substrate to change its elemental composition and improve material properties. It is commonly used for steel toughening, medical implants, and semiconductor device fabrication.

  继续阅读
- Ion beam figuring (IBF)

  Ion Beam Figuring consists in locally sputtering atoms in order to create a surface with a specified profile. It is a used for precise figuring and finishing of optical elements, such as spheres, aspheres and free forms on lenses and mirrors. CAMECA’s ECR technology and ion optics system offer the highest flexibility in beam size, shape, and energy.

  继续阅读
- Etching, cleaning, polishing & milling

  Sputter cleaning, ion polishing, milling and cutting are all based on Ion Beam Sputtering. They are used as a surface preparation step before depositing a thin film, before high resolution imaging or surface analysis as well as for nanostructuring a surface. CAMECA’s ECR technology delivers stable and reliable beams, eliminating the maintenance required with filament-based technologies.

  继续阅读
- Ion assisted deposition

  Ion Assisted Deposition consists in modifing the properties of a growing thin film by directing an ion beam at it. It can also be used to purposely introduce compressive stress in the film to improve its mechanical properties. The stability and reliability of CAMECA ECR technology is attractive for ion assistance applications.

  继续阅读
- Nuclear and atomic physics

  CAMECA high energy single cavity sources are used in various setups for nuclear and atomic physics, ranging from particle injection into electrostatic storage rings or charge boosters, to power testing of future neutron detectors.

  继续阅读
